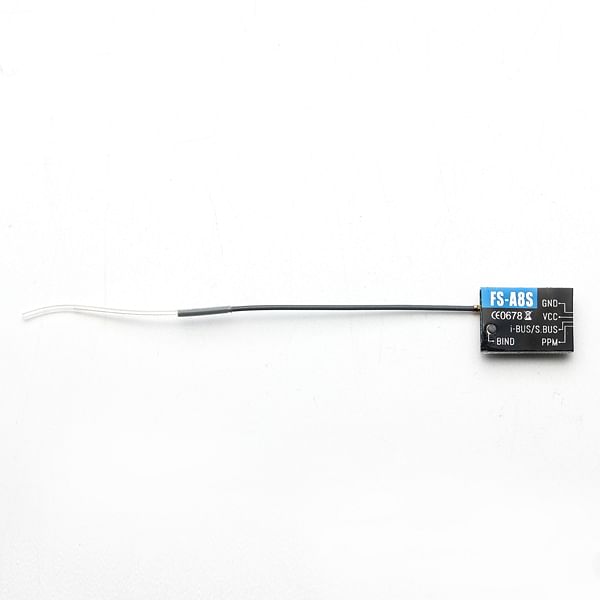

Flysky FS-A8S FS A8S V2 2.4G 8CH Mini RC Receiver with PPM i-BUS SBUS Output
$22.94
Availability:
101 in stock
Description
Flysky FS-A8S FS A8S 2.4G V2 8CH Mini Receiver with PPM i-BUS SBUS OutputThe FS-A8S is a compact 1-way receiver designed for multi-rotor aircraft. It uses the AFHDS 2A(Automatic Frequency Hopping Digital System) protocol, supports standard PPM output and has i-BUS support for up to 18 channels. Description:
Brand Name:Flysky
Item Name:FS-A8S Receiver
Channels: PPM 8CH, i-BUS 18CHModel type: Multi-rotor
Frequency range: 2.408-2.475GHz
Band width: 500KHz
Band number: 135
RX Sensitivity: -92 dBm2.4GHz system: AFHDS 2A
Modulation type: GFSKDSC port: PPM/i-BUS/S.BUSTransfer method: FHSSData output: 1.5mm*3 Pin PPM/i-BUS/S.BUS
Antenna length: 26mm (Not including brass contacts)
Input power supply: 4.0-8.4VDisplay method: LEDNo ground interference ( Transmitting and receiving 1 m from the ground): >300mWorking current: 40mAEach channel data: depend on the transmitterChannel delay: <15mSSize: 20*14*5.3mm
Weight: 1.2g
Certificate: CE0678, FCCID: N45ZA8S00
Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2FFS-A8S Receiver Manual, Package Included:1X Flysky FS-A8S V2 2.4G 8CH Mini Receiver
Additional information
| Weight | 0.02 lbs |
|---|---|
| MPN | 1092861 |
