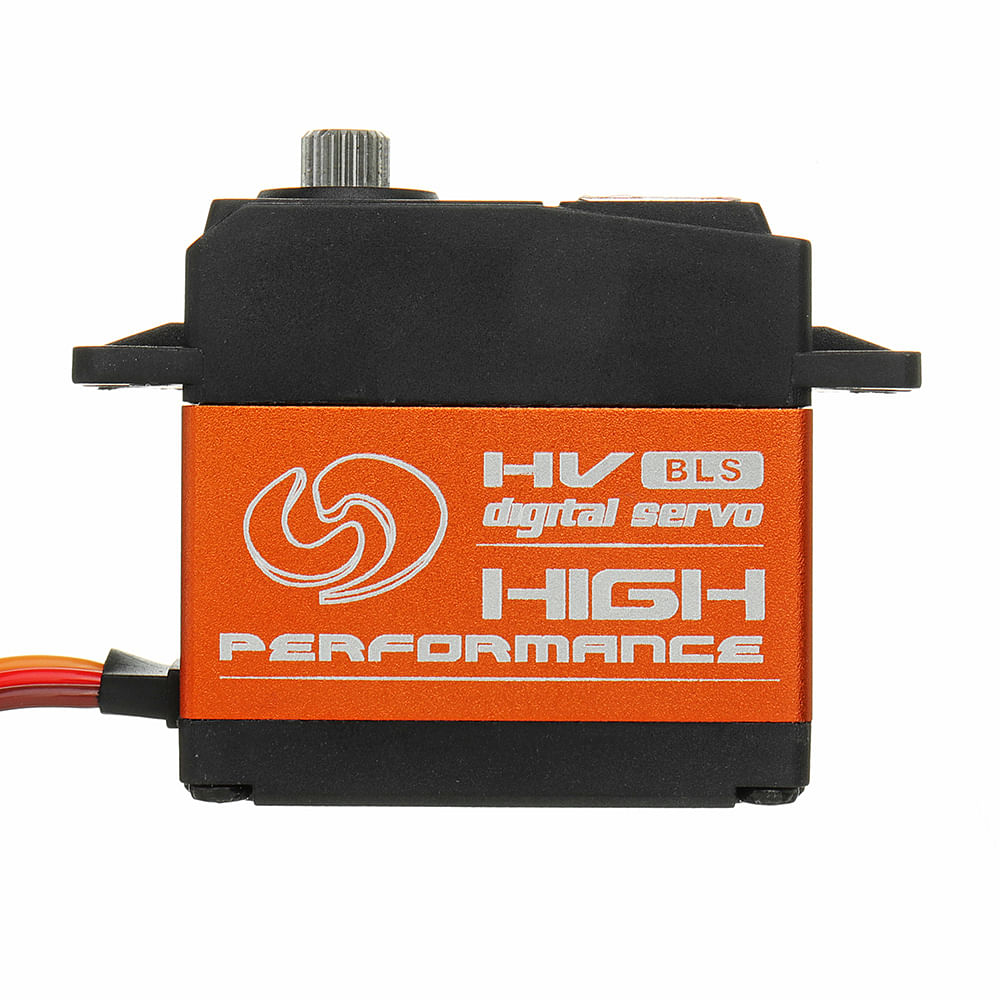

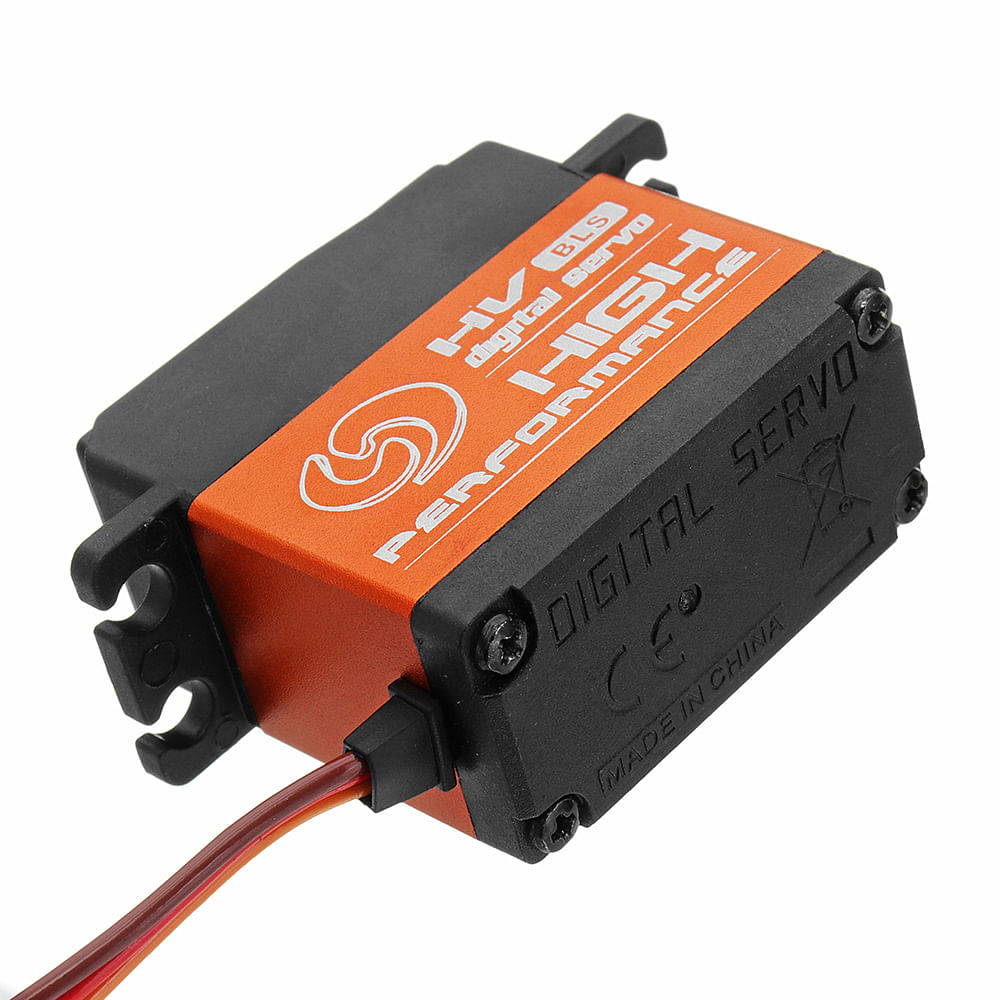

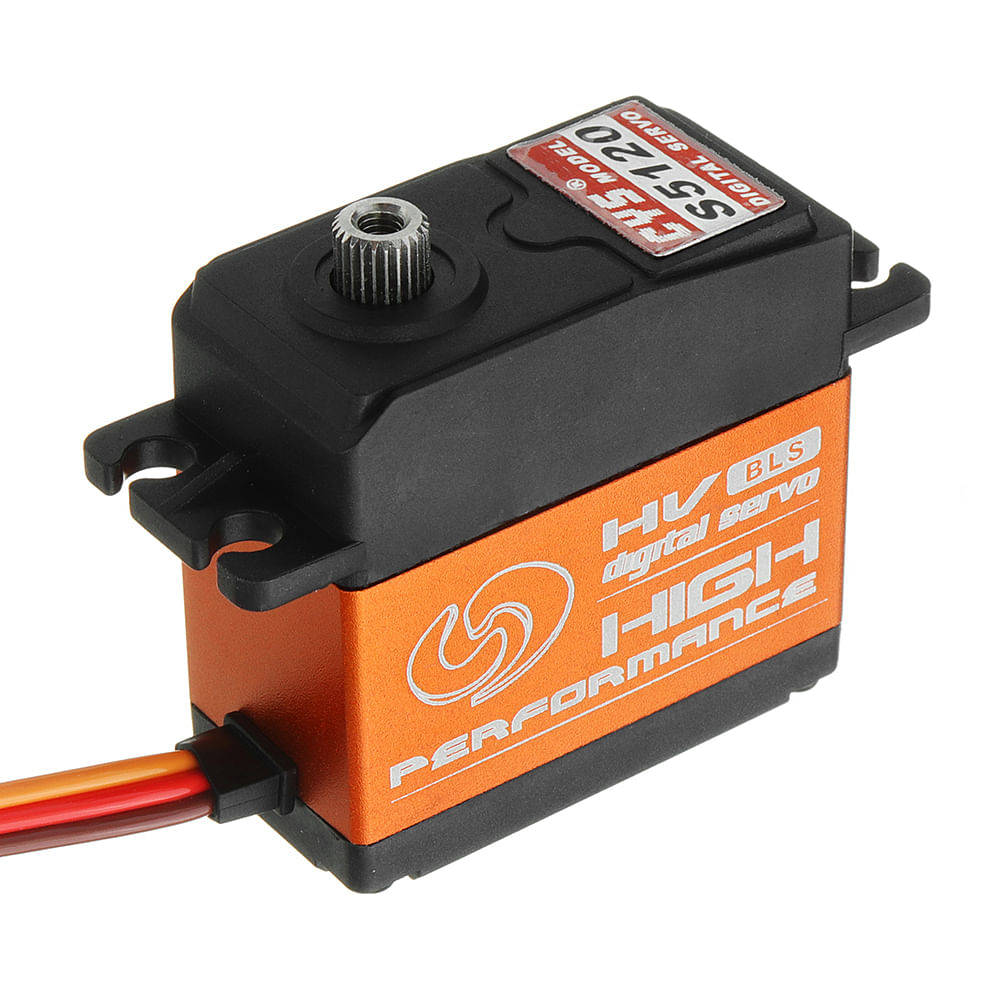

CYS-BLS5120 20KG Large Torque Digital Standard Brushless Motor Servo For RC Model
$74.24
Availability:
2 in stock
Description
CYS-BLS5120 20KG Large Torque Digital Standard Brushless Motor Servo For RC ModelDescription:
Item No. CYS-S5120
Type Digital
Weight 64g
Size 40.3*20.3*39.2mm
Control System (+)Pulse Width Control 1500usec Neutral
Operating Voltage 6.0~7.4VoltsOperating Temperature Range (-)10 to +50 degree COperating Speed (6.0V) 0.11sec/60° at no loadOperating Speed (7.4V) 0.09sec/60° at no loadStall Torque (6.0V) 17kg.cm
Stall Torque (7.4V) 20kg.cm
Operating Angle 45deg.one side pulse traveling 500 usec
360 Modifiable No
Direction Anticlockwise/Pulse Traveling 1000~2000usec
Current Drain 6.0V) 5mA/idle and 100mA no load operating Current Drain (7.4V) 5mA/idle and 120mA no load operatingStall Current 3.4A/4.2A
Dead Band Width 2usec
Motor Type Brushless motor
Bearing Type Dual Ball Bearing
Horn gear spline 25T
Gear Type Titanium
Connector Wire Length 300mm
Brown/Black = Negative
Wire info Red = Positive Orange/White = Signal

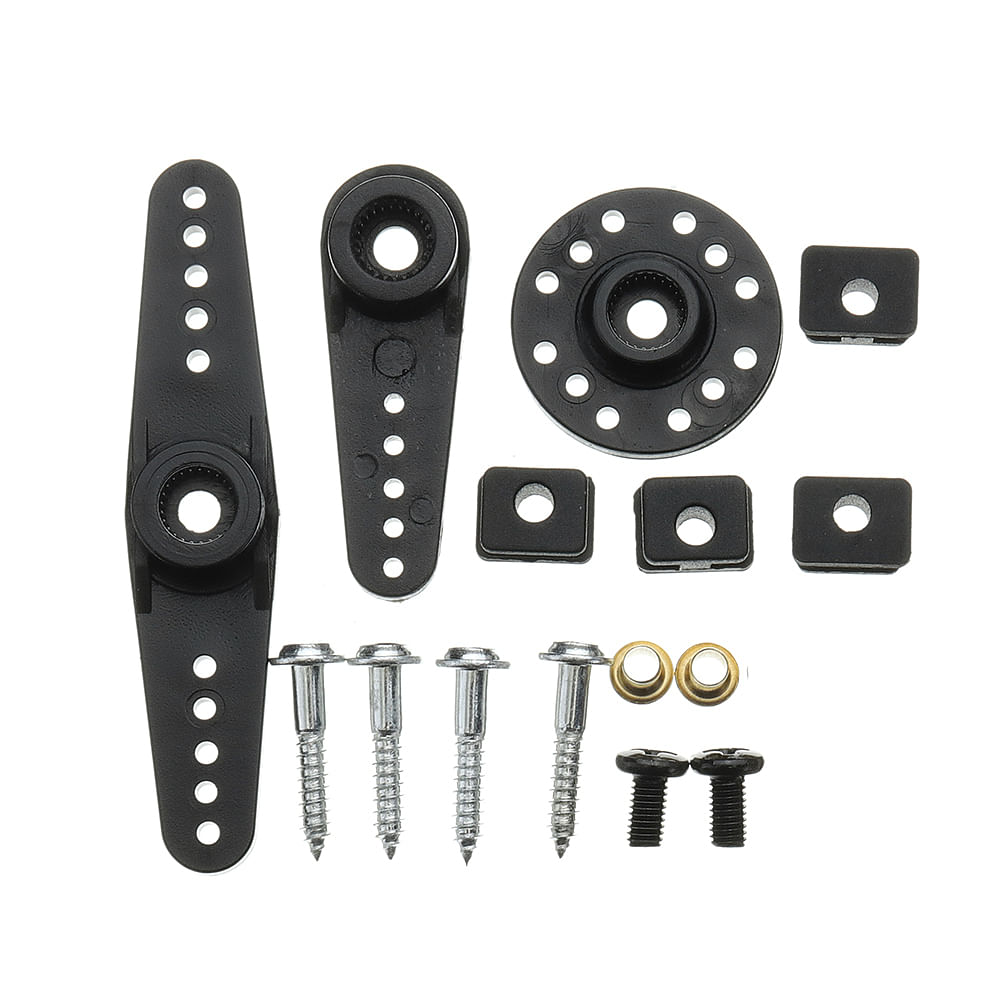

Important Notes:-Refer to the figure when installing the servo accessories.
-For engine powered airplanes and boats, rubber must be used to reduce vibration.
-Please choose correct model for your application.
-Torque over-loaded will damage the servo’s mechanism-.
– Keep the servo clean and away from dust, corrosive gas and humid air.

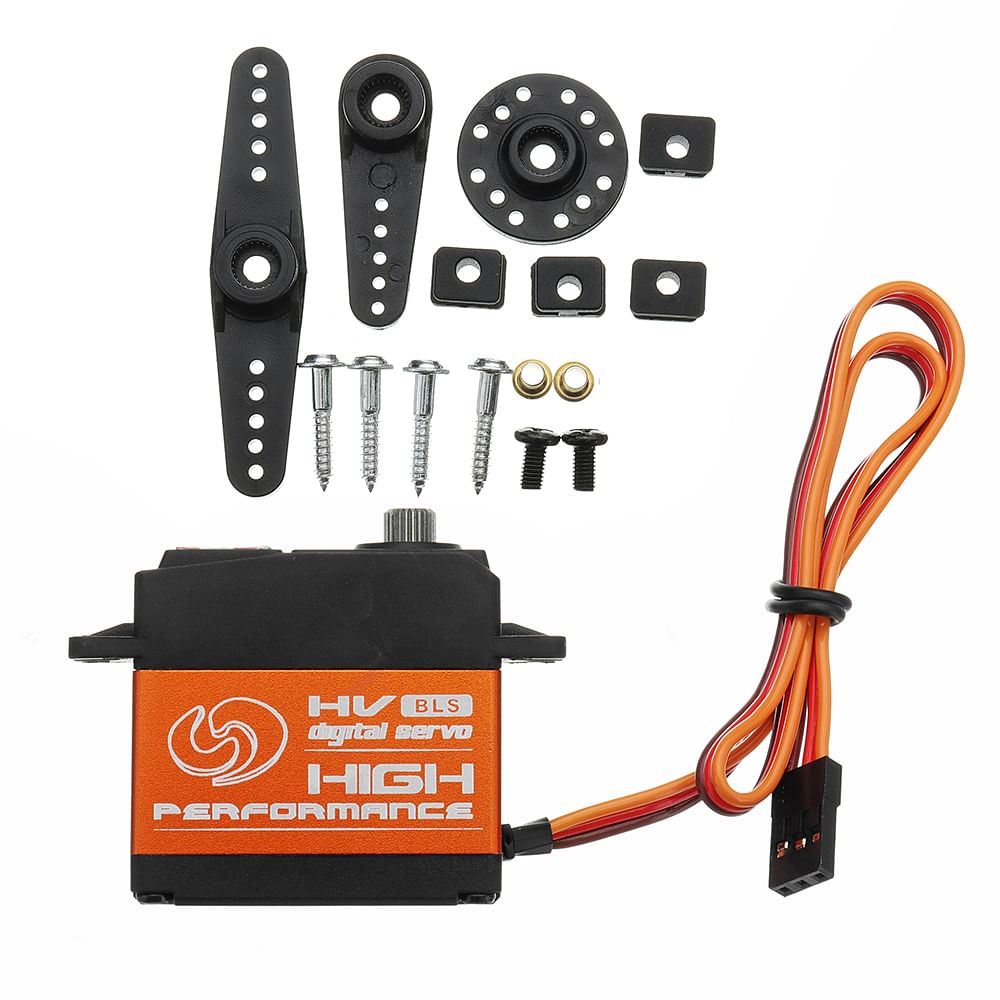

Package Included:
1 x CYS-BLS5120 20KG Brushless Motor Servo
Additional information
| Weight | 0.19 lbs |
|---|---|
| MPN | 1338553 |
